CUB™ Brackets

Clamp-style Universal Brackets™ or CUB Brackets are unmatched for their ability to mount and position sensors; photoelectric, fiber-optic or ultrasonics, as well as Machine Vision cameras. Click for an animation of How it Works.

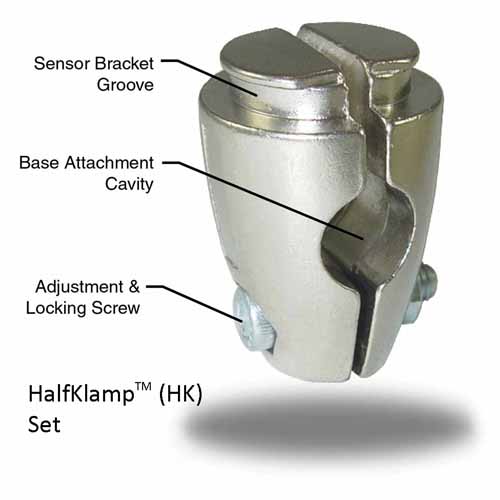

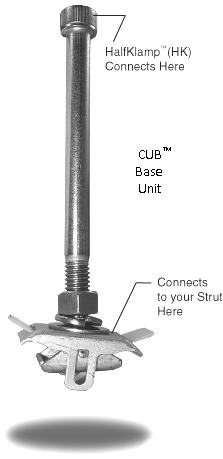

Each CUB™ solution consist of three (3) parts; the Base, a HalfKlamp™ Set & Sensor Bracket.

When a design calls for more than a single HK Set a Sensor Mounting System™ is created.

CUB™ Tech Help, or for a quick-quote/ship custom click Here.



Sensor Bracket, Machine Vision, GuardHouse™
Model B-VS-16719 mounts, positions & protects a wide variety of compact machine vision cameras.

View PDF


HalfKlamp™ Set, Rod Mount
Specify CUB-R... these HalfKlampSet are ready to connect to customer-supplied 1/2" (12mm) diameter rods, just add a suffix for the correct Sensor Bracket.

View PDF


Sensor Bracket, UniversalFit™
Regardless of sensor brand, the UF family of brackets
universally mounts & positions your sensors with improved results.

View PDF


Sensor Bracket, Mini Limit Switch, Flat
Model B-MLS-F mounts and positions a wide variety of limit switches & limit switch-style sensors.

View PDF


Sensor Bracket, Mini Limit Switch
Model B-MLS mounts and positions a wide variety of limit switches & limit switch-style sensors.

View PDF


Sensor Bracket, Flat
Model B-xx-F mounts and positions a wide variety of 8, 12, 18, 22, 24, 26, 30, 32 & 34mm threaded barrel style sensors.

View PDF


Sensor Bracket, Angled
Model B-xx-A mounts and positions a wide variety of 8, 12, 18, 22, 24, 26, 30, 32 & 34mm threaded barrel style sensors.

View PDF


Sensor Bracket, Offset
Model B-xx-O mounts and positions a wide variety of 8, 12, 18, 22, 24, 26, 30, 32 & 34mm threaded barrel style sensors.

View PDF


Sensor Bracket, Universal GuardHouse™
Model B-UGH mounts, positions and protects a wide variety of rectangular body-style photoelectric, color & registration sensors.

View PDF


Sensor Bracket, Machine Vision Camera
Mount and position a wide variety of compact machine vision cameras...

View PDF


Sensor Bracket, Limit Switch type
Model B-LS mounts and positions a wide variety of Limit Switches & Limit Switch style sensors.

View PDF


HalfKlamp™ Set, Strut Mount
Specify CUB-S... these HalfKlampSet are ready to clip into customer-supplied 1-5/8" wide strut channels, just add a suffix for the correct Sensor Bracket.

View PDF


Sensor Bracket, Precision Alignment
Sensor Bracket B-xx-PA provided for precision alignment of laser-based or fine focus sensors. Models for M8x1, M12x1, M18x1 & M30x1 sensors; i.e. B-12-PA

View PDF


HalfKlamp™ Set, Bolt-on Mount
Specify CUB-B... these HalfKlampSet are ready to connect to to your machine via a through hole or a 3/8-16 UNC tapped hole, just add a suffix for the correct Sensor Bracket (all bolt lengths are available).

View PDF


Sensor Bracket, B-BMS style
Attach a wide variety of 18mm to 40mm diameter sensors and controls. The B-BMS series brackets work with our CUB™ & SMS™ systems. Models for 40mm cube-style sensors as well.
